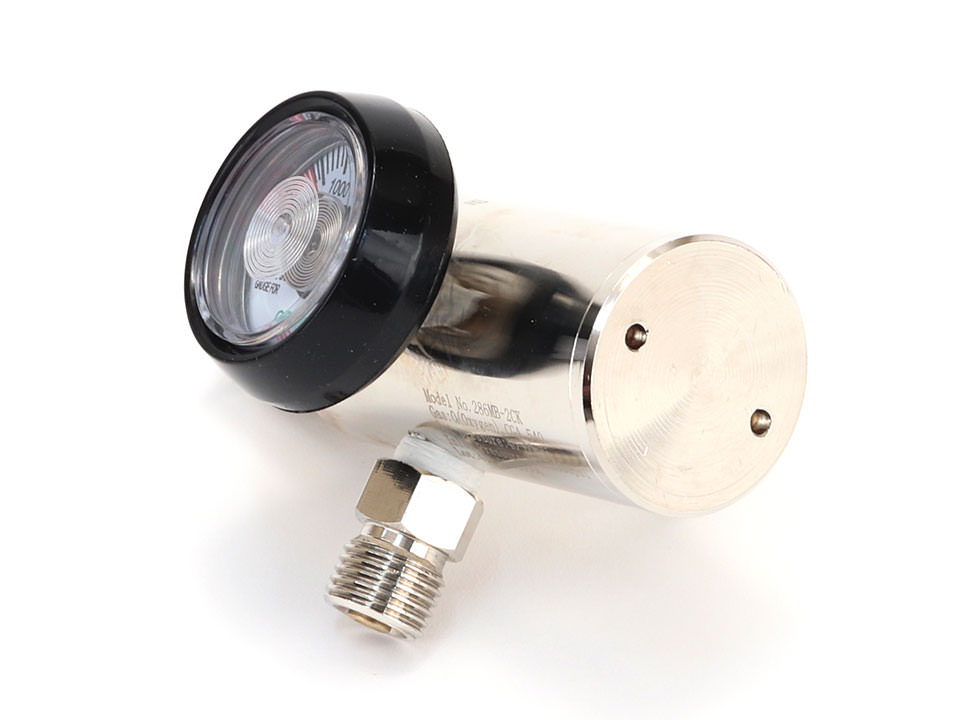

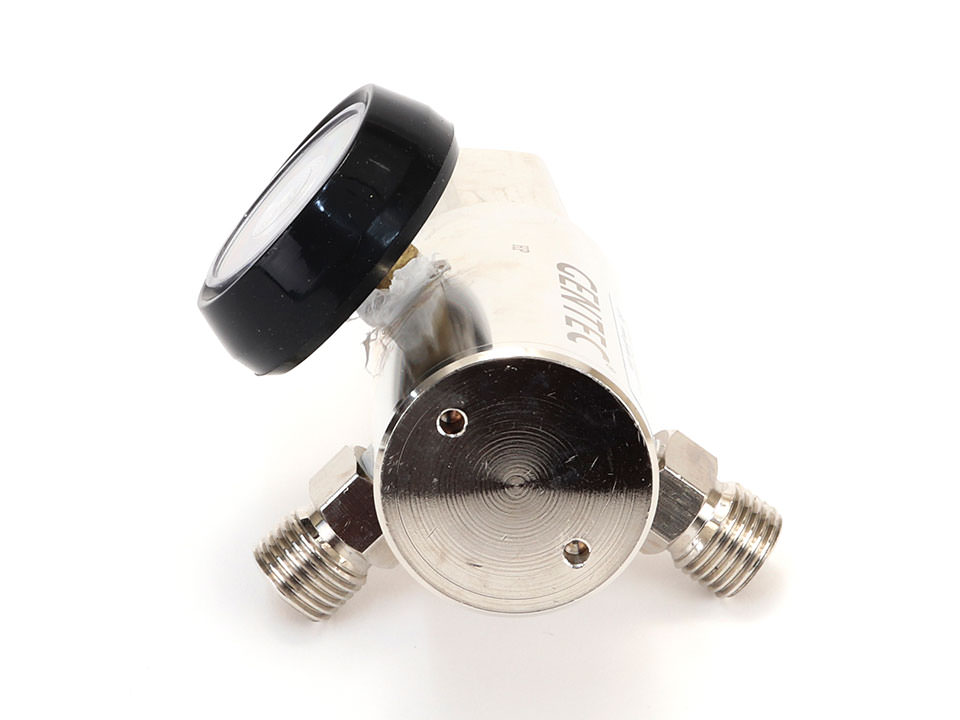

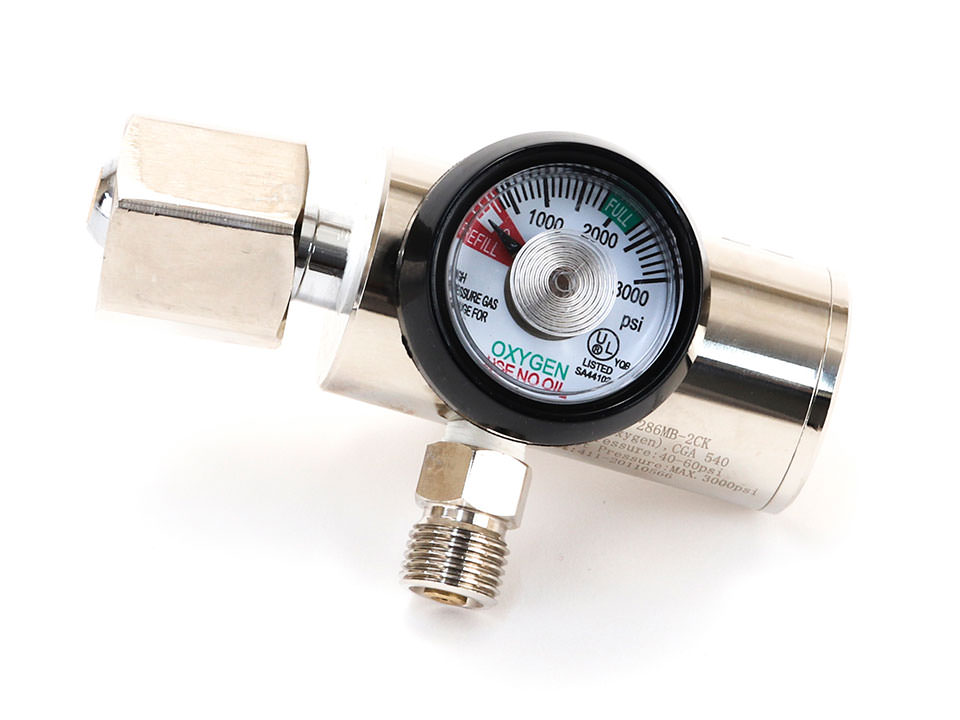

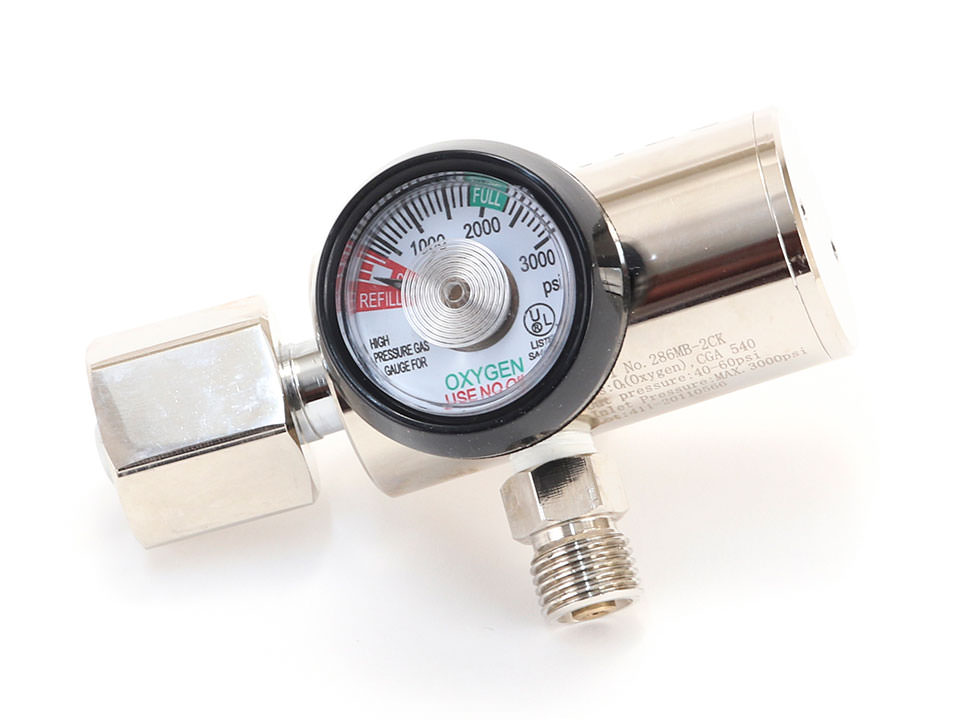

On-Board Oxygen Regulator

Genstar Technologies

Description

This on-board regulator provides 2 self-sealing DISS outlets and a chrome-plated brass body for ease of use and safety.



  • 3000 psi maximum inlet pressure
  • 1-1/2” diameter UL-listed gauge
  • Complies to CGA standards
  • Internal relief valve
  • Piston design regulator
  • CGA-540 nut and nipple inlet



Item #
Description
In Stock
Price
Quantity

# N/A
View alternatives

More Information

  • Sintered bronze inlet filter for longer service life
  • Easy to read flow rate window
  • Meets ignition testing for oxygen service

Questions and Answers

Q

Does the On-Board Oxygen Regulator supply 50 LPM?

Anonymous- On Monday, 20 September 2021

A

Yes, the On-Board Oxygen Regulator provides a constant 50 psi source of oxygen.

Jim L.- answered On Monday, 20 September 2021

Q

Does the On-Board Oxygen Regulator go directly on the bottle? Or will we need a hose to attach from bottle to regulator?

Anonymous- On Tuesday, 05 April 2022

A

The OJ2860 On-Board Oxygen Regulator is designed to attach directly to the large on-board cylinder, via a CGA-540 (nut and nipple) connection. It has two DISS1240 outlets that the hose from the on-board oxygen system attaches to. They are self-sealing, so if you only use one, the other doesn’t need to be capped.

Jim L.- answered On Tuesday, 05 April 2022

Q

Does the On-Board Oxygen Regulator supply 0.1liter/min resolution regulator?

Anonymous- On Wednesday, 29 November 2023

A

The On-Board Oxygen Regulator supplies a constant 50 psi source via its two male self-sealing DISS outlets.

Jim L.- answered On Wednesday, 29 November 2023
